Precast Concrete Reduces Closure Time in Fire Prone Community

Replacing a bridge is never convenient. Replacing one in a rural, fire-prone area where emergency access is critical is even more challenging.

As El Dorado County prepared to replace the Newtown Road Bridge near Placerville, California, minimizing construction duration became a key project objective. Local residents relied on the roadway for daily travel, and concerns about wildfire evacuation and emergency response routes drew additional attention to the project.

At the same time, replacement was unavoidable.

Originally constructed in 1929, the existing bridge had been deemed functionally obsolete and no longer met modern standards. The County needed a durable, long-term crossing solution that could be installed efficiently, helping reduce roadway closure impacts while restoring a critical piece of infrastructure for the community.

With construction duration under scrutiny, the project team sought a replacement solution that could reduce field work and accelerate installation without compromising long-term performance.

A traditional cast-in-place bridge would have required extensive on-site construction, including formwork installation, reinforcing steel placement, concrete pours, and curing time. Those operations would have extended build schedules and increased the amount of time the roadway remained closed.

Ultimately, the challenge was to deliver a durable replacement crossing that met modern standards and helped reopen this important rural roadway as quickly as possible.

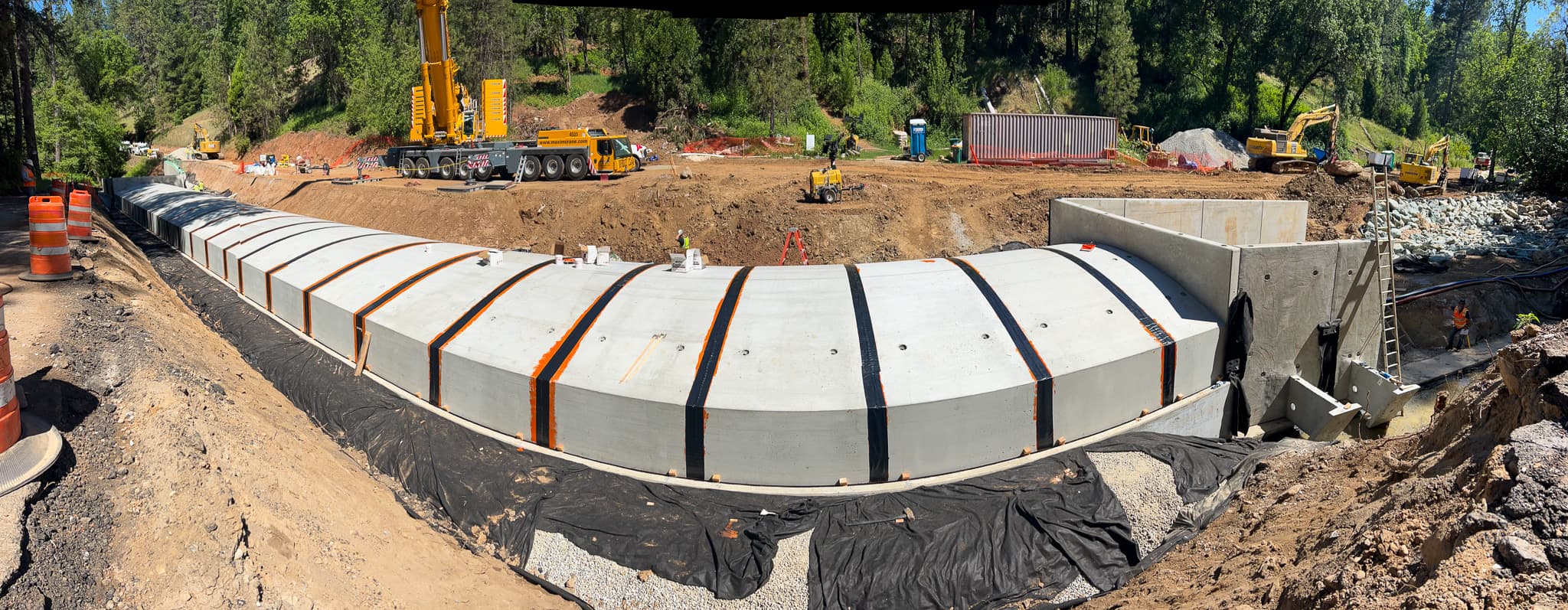

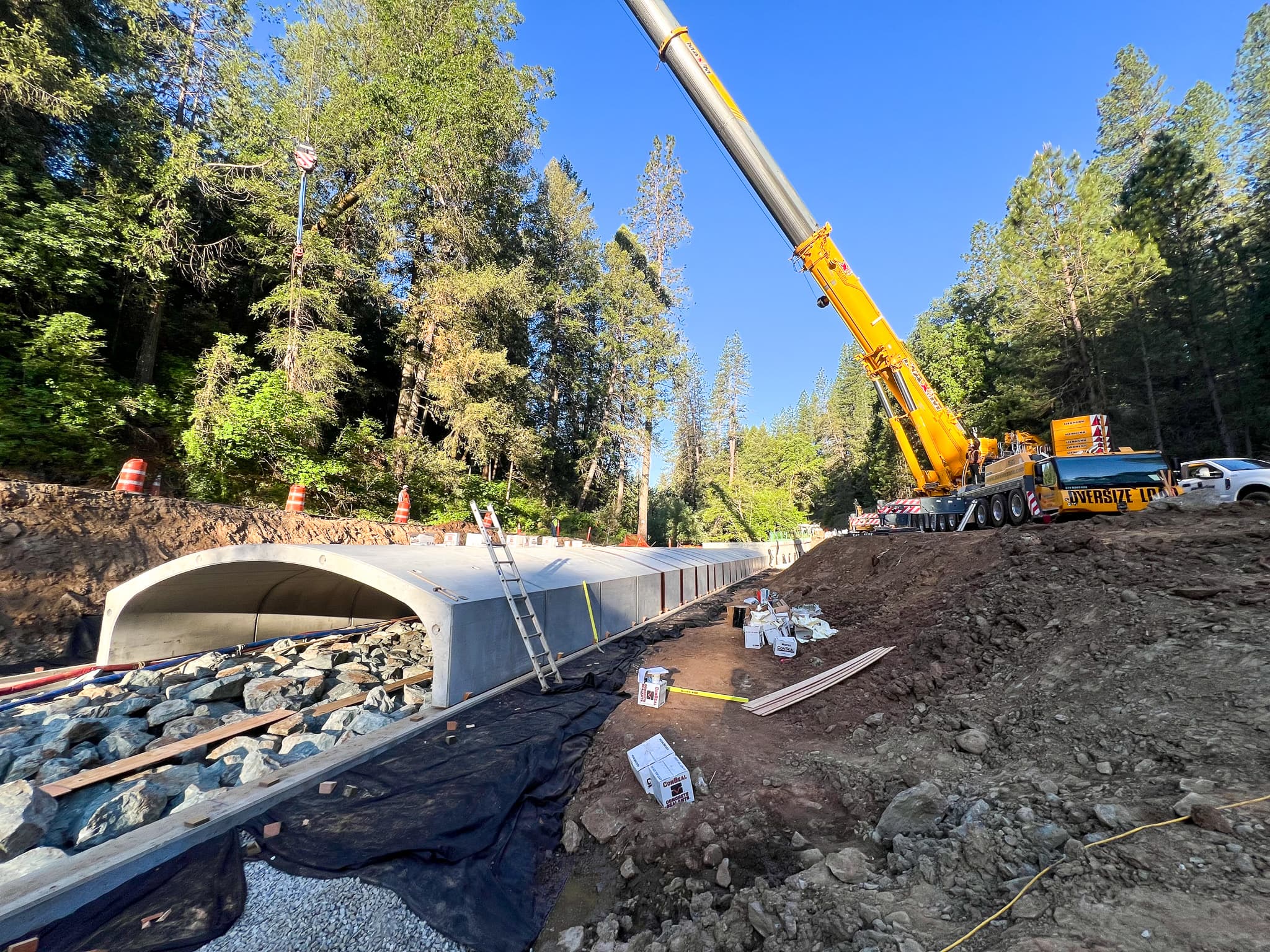

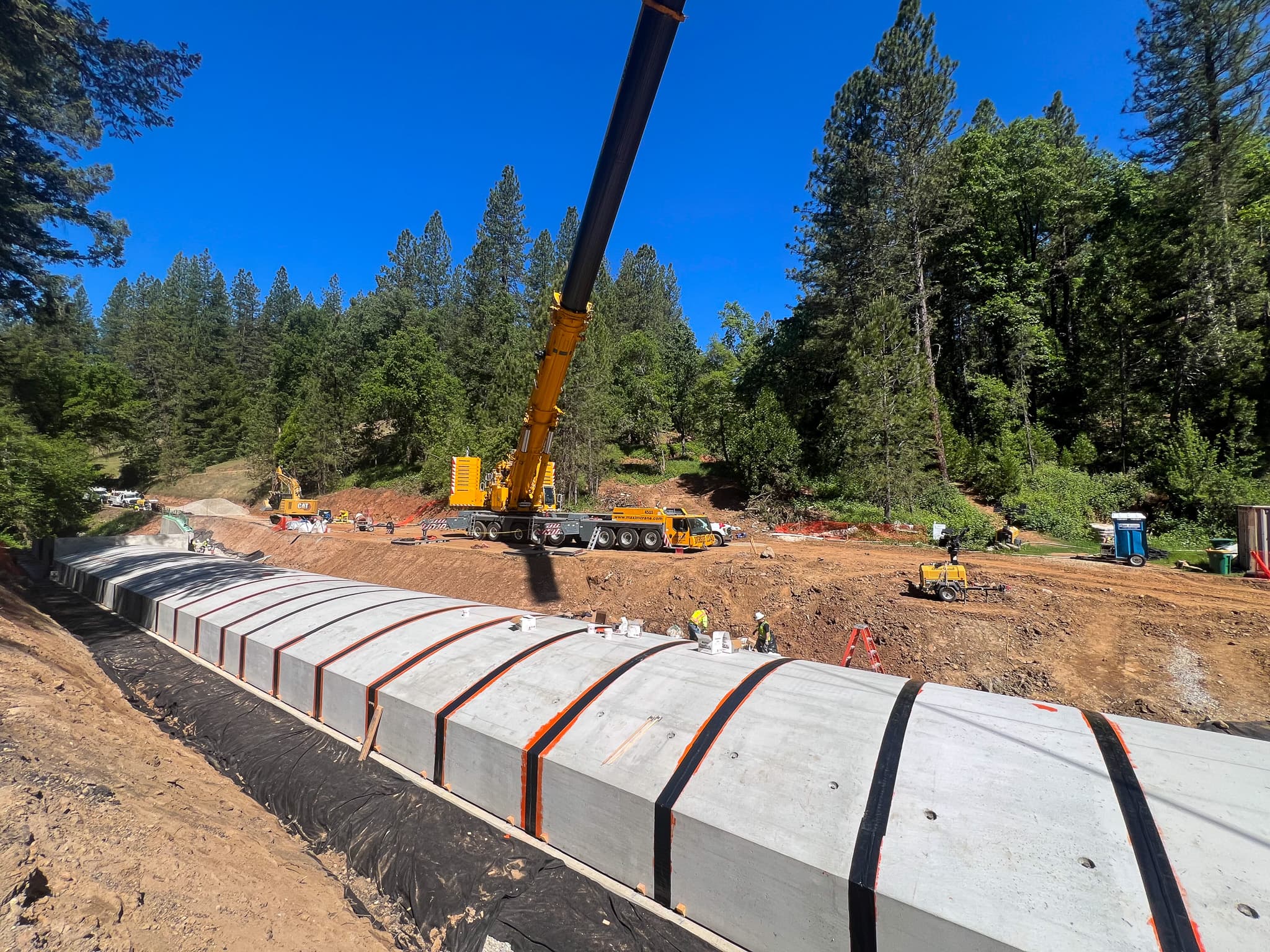

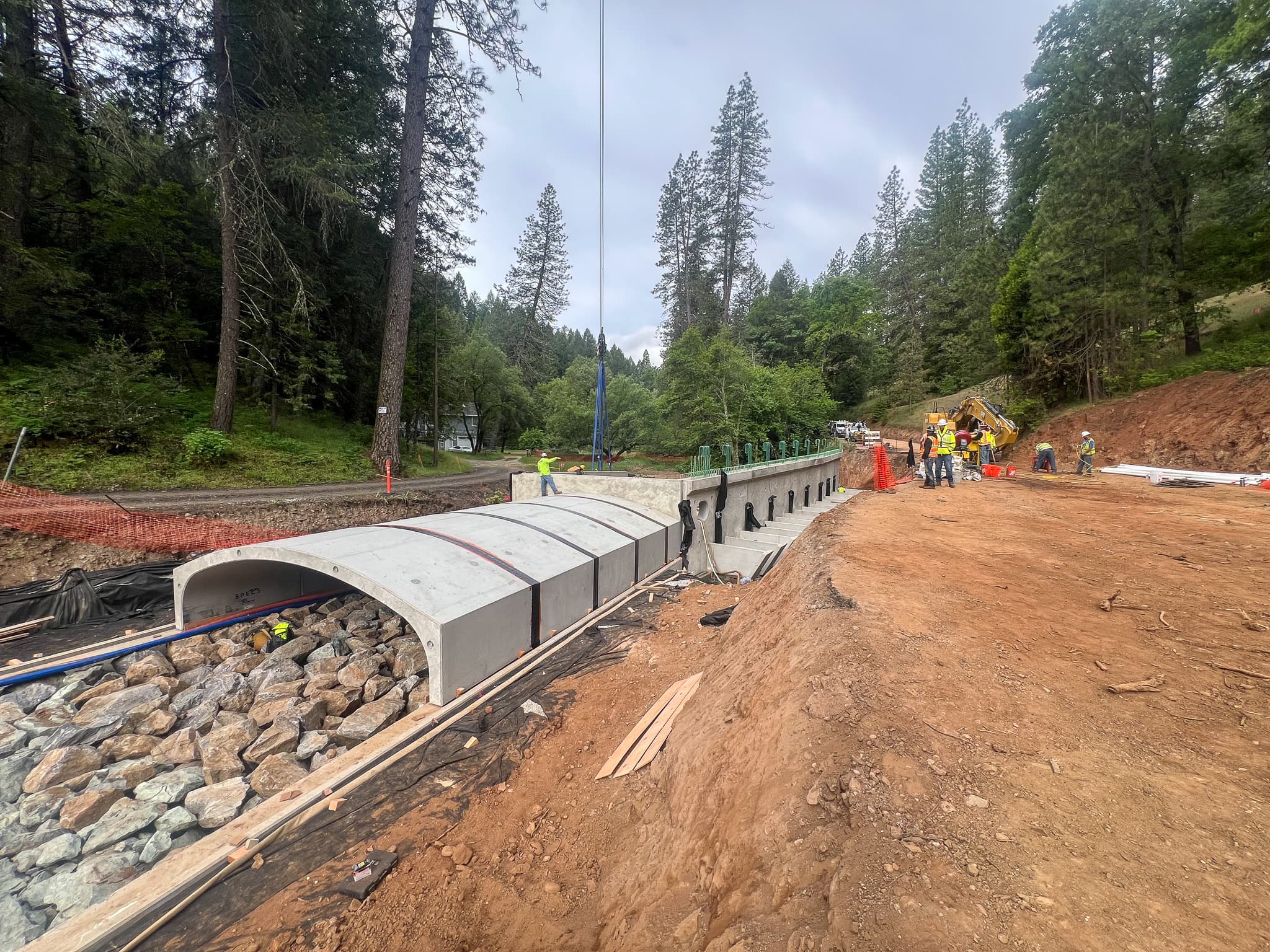

SPECS Engineering designed a 192’ long precast concrete arch culvert bridge, which allowed the project team to shorten the construction timeline. Jensen Infrastructure manufactured the precast pieces, including 25 arch sections measuring approximately 8’ W x 22’ L x 6’ H.

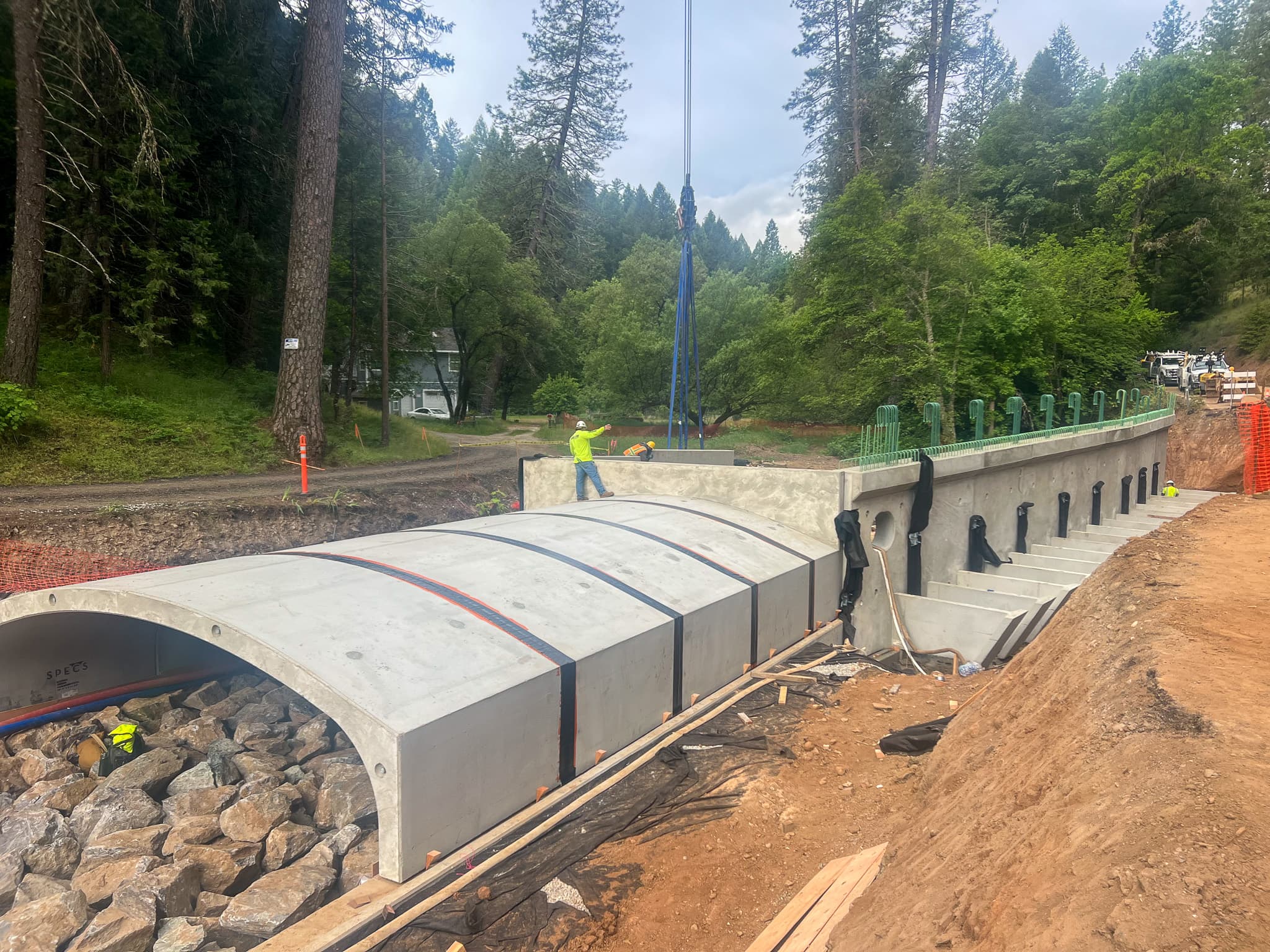

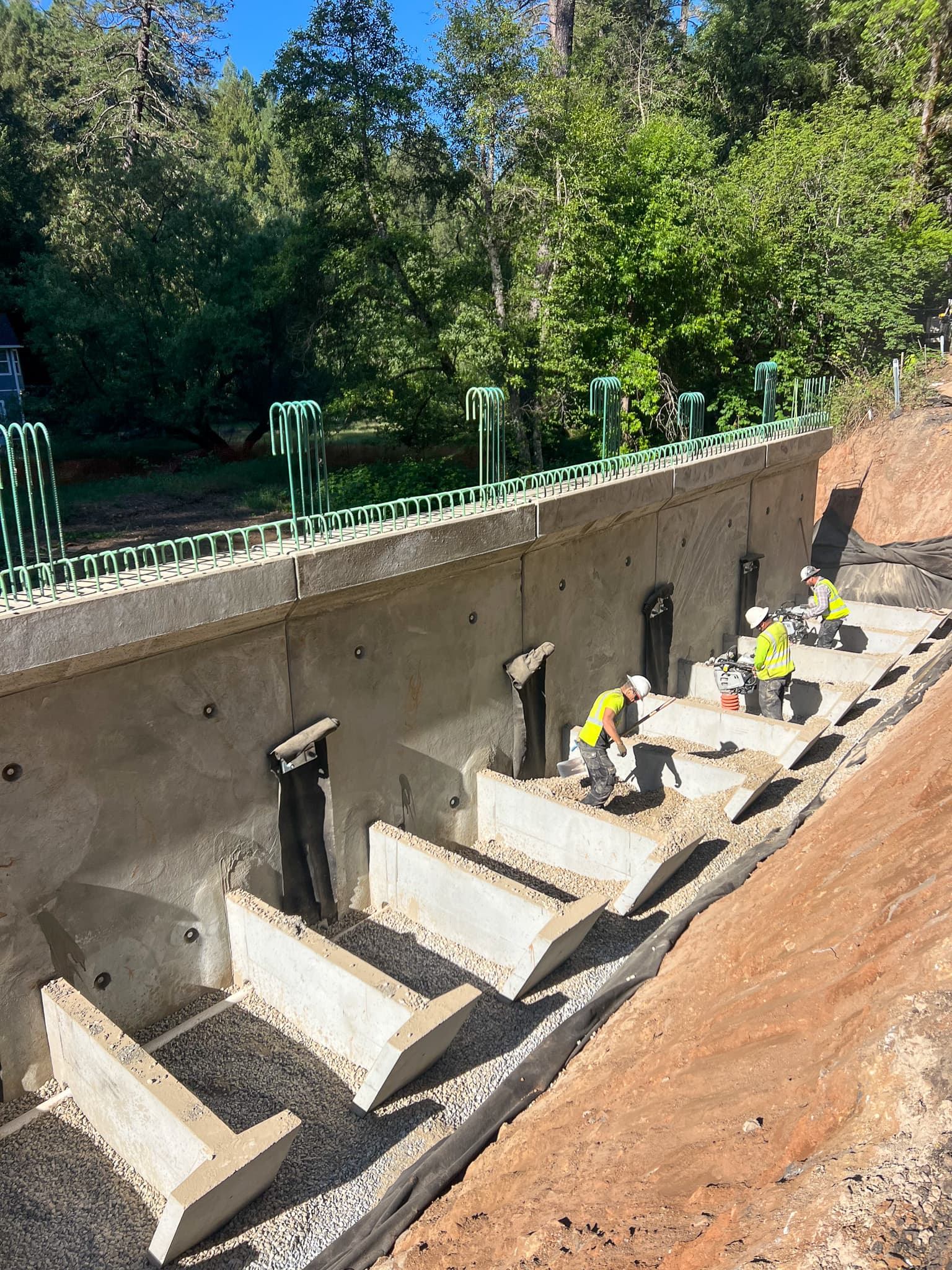

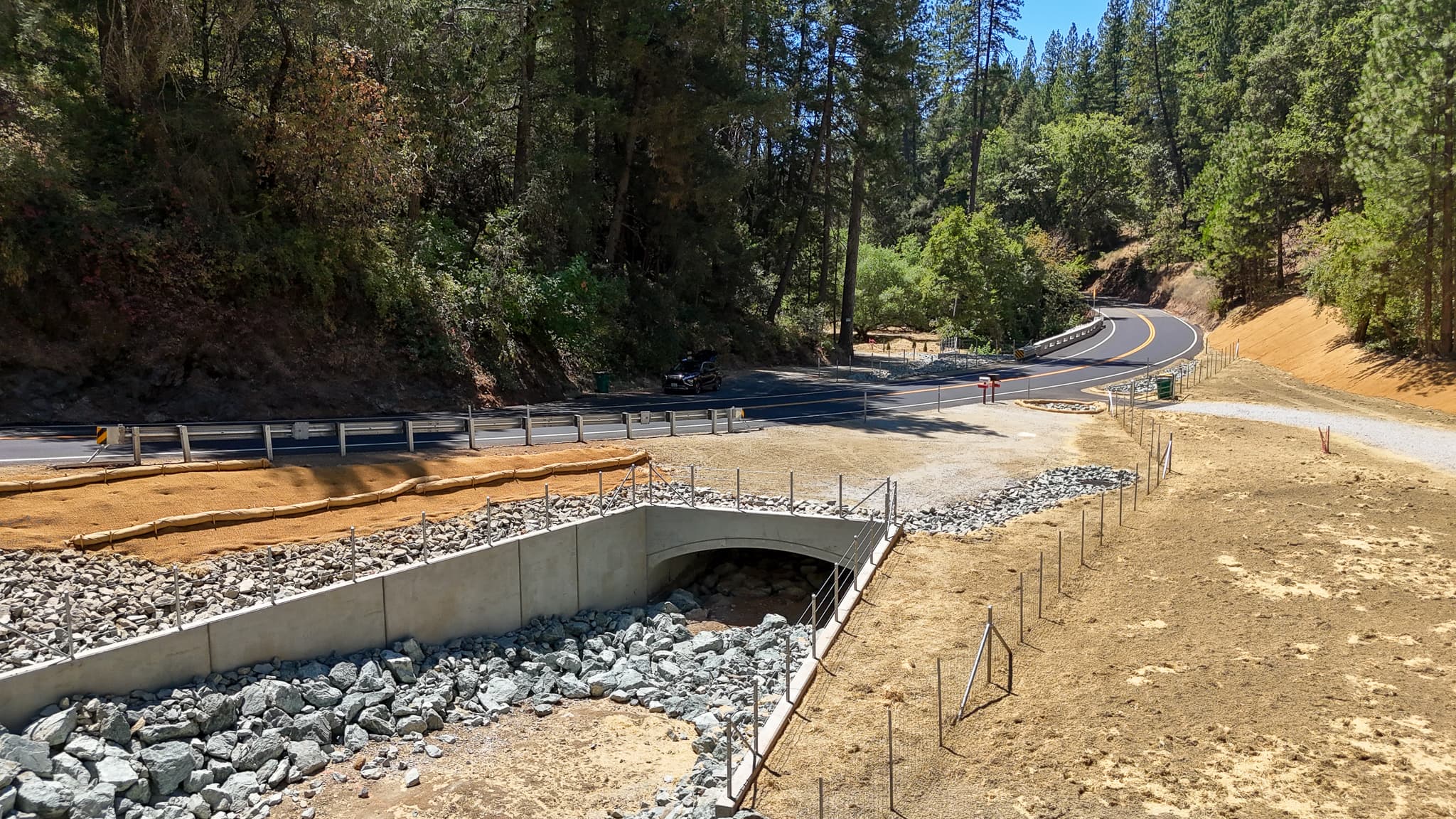

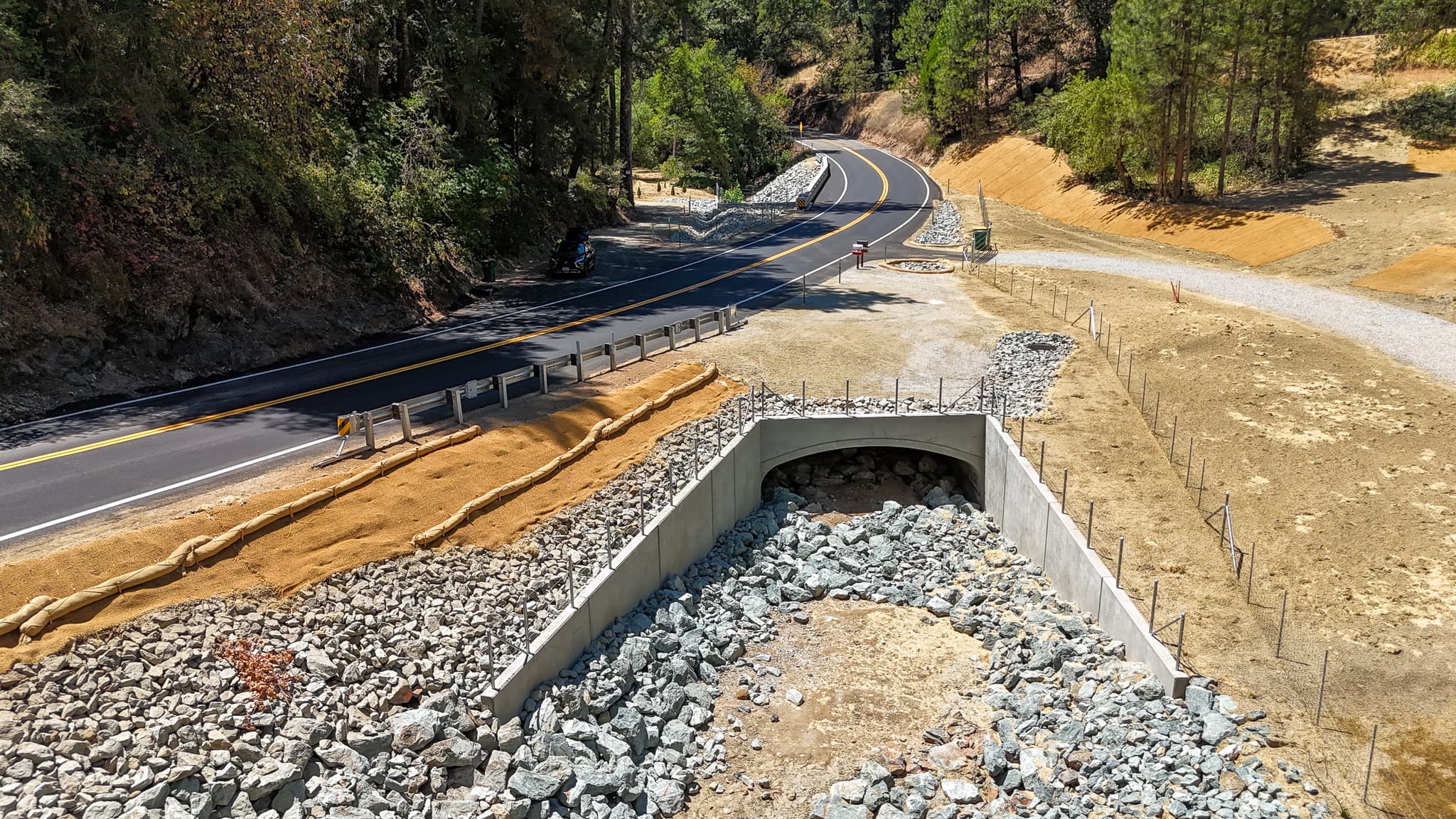

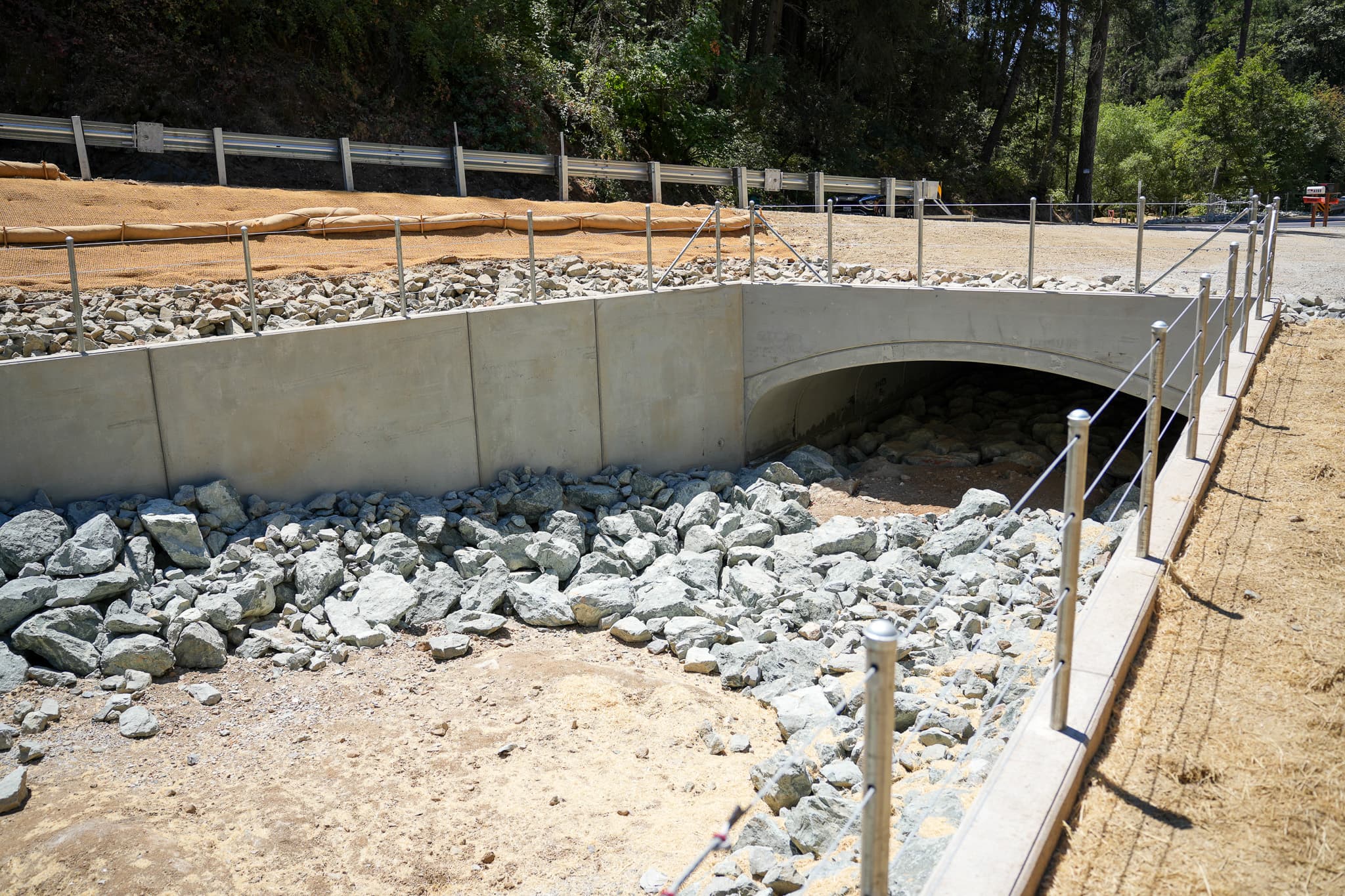

The precast headwalls and wing walls served a dual purpose. They formed the arch culvert bridge’s entrance and exit while also retaining and supporting the roadway embankments. Exposed reinforcing steel was also cast into the wall sections, allowing Caltrans to attach safety rails after installation.

By manufacturing the arch culvert off-site and delivering it ready for installation, the project avoided many of the time-consuming field activities associated with a traditional cast-in-place bridge. The result was a modern replacement that helped support an accelerated construction schedule while addressing the community’s concerns about prolonged roadway closures.
