What is TraxPlate™?

TraxPlate is a slip resistant surface applied to both aluminum and steel. TraxPlate provides a highly wear resilient surface with ideal slip resistant characteristics. TraxPlate far exceeds conventional non-slip materials, such as diamond plate, for slip resistance in both wet and dry applications.

Material Description

TraxPlate is a thermally bonded metallic surface that forms a mechanical bind to the base material. The finished surface has a resemblance similar to sandpaper. By varying the application parameters, different surface “roughness” can be achieved. The use of special additives in the bonding material affects the properties of the surface making it harder and more resistant than the base material. Strict quality control measures and automated processing ensure superior performance and consistency.

TraxPlate Brochure


TraxPlate may be used to reduce slipping hazards on flooring, ladders, stairways, utility covers, catwalks, and other products exposed to pedestrian or vehicular traffic. The coating can be applied to finished products or raw plate that is then further processed. Because of the high bond strength, TraxPlate holds up to conventional manufacturing processes such as welding, shearing, and forming.



The surface as applied will be the typical color of the material (Le. aluminum or steel).


TraxPlate can be painted to meet the customer’s color requirements using water or oil based paints or epoxies. Note, however, that the application of paint will partially reduce the slip-resistant characteristics of the plate. Coarse or medium texture is recommended for painted finishes.


TraxPlate steel materials can be provided with a hot-dip galvanized finish per ASTM A123. As with all wire spray finishes, care must be taken during the plating process to avoid chemically attacking the bond layer of the surface. Refer to TraxPlate plating guidelines for specifics.

Surface Roughness

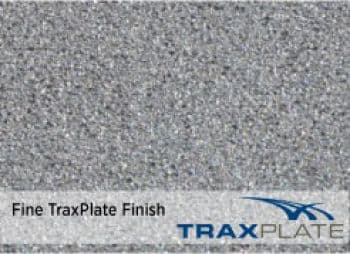

fine traxplate finish


The fine texture on TraxPlate approximates that of 80 to 100 grit sandpaper, with an average particle size of approximately .010″ to .015.” This finish provides similar slip resistance characteristics to other finishes. The finer texture should be used where a courser finish would be undesirable. For example, where falling on an excessively rough surface could cause personal injury, the finer texture may be preferred. With fine texture, special consideration should be given for additional finishes such as paint or galvanizing, which tend to fill in the texture and reduce slip resistance.

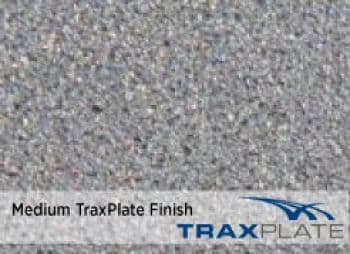

medium traxplate finish


Medium roughness on TraxPlate approximates that of 36 grit sandpaper, with an average particle size of approximately.020″ to .030″. This finish provides excellent durability and slip resistance and is the default finish when unspecified. The medium finish accepts most paints and galvanizing without a significant loss in slip resistance.

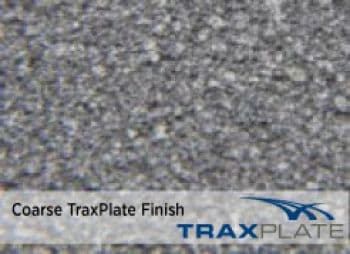

course traxplate finish


Coarse roughness on TraxPlate results in an average particle size from .030″ to .040″. This is a preferred finish when maximum slip resistance is needed, when thicker coatings are to be applied, or where dust and debris would otherwise fill in the texture and reduce its effectiveness.
